Sreeram Engineering Works Simply Reliable
Customer Qualification Deck · 2026
Sreeram
Engineering Works
Integrated foundry and precision machining for CV, off-highway, and industrial OEM programs. 25+ years of serial production from Coimbatore, India.
₹50 CrFY Revenue
150 PPMField Quality
PPAP L5All Programs
200+Workforce
ISO 9001:2015  ·  IATF 16949:2016  ·  TÜV SÜD
Key Parameters
₹50 CrAnnual Revenue
150 PPMField Quality
PPAP L5All Active Parts
200+Workforce
25+ YrsIn Operation
0 NCLast External Audit
Confidential · Customer Qualification Deck · 2026 01 / 15
Sreeram Engineering Works
Vision & Mission
Our Vision
To be among the top three OEM suppliers in casting and machining — for every customer we serve.
We aspire to build a progressive, innovative, and trusted manufacturing organisation — one that India's most demanding OEMs choose first.
Our Mission
  • Deliver total customer satisfaction through continual improvement in products, processes, and systems
  • Meet challenging goals by investing in the right talent, experience, and technology
  • Keep the customer's perspective at the centre of every decision
  • Build a disciplined, harmonious, and goal-oriented work environment
  • Operate with ambition, accountability, and a commitment to quality at every level
25+Years in Operation
6OEM Customers
Top 3Target Position
Simply Reliable — in everything we do 02 / 15
Sreeram Engineering Works
Company Overview
Snapshot
Est. 1996Machine Shop
Est. 2012Foundry
200Workforce
₹50 CrFY Revenue
CoimbatoreLocation
At a Glance
Foundry SG & Grey Iron ISO 9001:2015 · 1–100 kg · 400T/month capacity · ARPA 600 jolt-squeeze moulding + cold-box cores
Machine Shop IATF 16949 HMC · VTL · CNC · CMM · specialist in hubs, flywheels, housings, pulleys
Integration Casting + Machine In-house casting and machining under one quality system — lower launch risk, single accountability
Markets CV · Off-Highway Commercial vehicles, off-highway equipment, industrial pumps & hydraulics
Certifications ISO 9001 + IATF TÜV SÜD certified · Last audit Aug 2025 · Zero non-conformances found
Quality 150 PPM · PPAP L5 Customer-returned field quality · PPAP Level 5 on all active programs · ERP monitored
Coimbatore, India · Dual Division Operation 03 / 15
Sreeram Engineering Works
Integrated Foundry
Capacity
400 TMonthly Capacity
250 TCurrent Output
~38%Headroom Available
5 WeeksStandard Lead Time
ISO 9001Certification
Est. 2012In Operation
Casting Capability
  • SG Iron and Grey Iron castings — all standard grades
  • Part weight range: 1 kg to 100 kg
  • ARPA 600 simultaneous jolt-squeeze flask moulding machine — 800×900×300 mm box, 35 moulds/hr, automated sand plant with PLC control
  • Cold box core shooters — 12 kg and 25 kg units (3 machines)
  • Inductotherm induction dual track furance 1-tonne
  • Automated sand plant with PLC control
Inspection & Testing
  • 25-element Metavis 108 N+ spectrometer with image analyser
  • UTM — FSA 600 kN · BHN hardness tester
  • ERP-integrated production and quality monitoring
ISO 9001:2015 Certified 04 / 15
Sreeram Engineering Works
Precision Machining
Capacity
46Total Machines
60%Current Utilisation
40%Headroom Available
3 WeeksStandard Lead Time
IATF 16949Certification · TÜV SÜD
Est. 1996In Operation
Machining Equipment — 46 Machines
  • Makino HMC a81nx (3 units) — Flagship · 630×630 mm pallet, 8,000 rpm, 136-tool magazine with auto tool-load station, 1,200 kg max payload
  • VMC (23 units) · 12 × 4th-axis, 7 × indexing head, 6 × double-pallet, 2 × single-bed
  • VTL (7 units) · 6 × Chuck Ø400 mm + 1 × Chuck Ø540 mm
  • CNC Turning Centres (9 units)
  • Automatic and manual dynamic balancing machines · Laser marking: 6 units
  • Conveyor-type industrial washing machine · Millipore cleanliness testing
Inspection & Testing
  • CMM — Brown & Sharpe Global Series, 1500×900×800 mm
  • MarSurf CD 140A contour tester · M400 surface roughness tester
  • Millipore cleanliness testing with micro-particle analysis · Leak testing
  • 2D height gauges · Presetter tool crib management
IATF 16949:2016 Certified · TÜV SÜD 05 / 15
Sreeram Engineering Works
Quality Assurance
Key Metrics
150 PPMField Quality (Returned)
Level 5PPAP All Active Parts
0 NCLast External Audit
Aug 2025Last Audit Date
TÜV SÜDCertifying Body
Quality Systems
Certifications ISO 9001 + IATF 16949 Both divisions certified by TÜV SÜD. Last external audit August 2025 — zero non-conformances. Scope covers foundry and machine shop.
APQP / PPAP PPAP Level 5 All active production parts have completed PPAP Level 5 submission. Control plans, FMEAs, and MSA studies maintained per IATF requirements.
SPC & Traceability ERP Integrated SPC monitored via ERP across production lines. Full SPC digital gauge integration on track for Q2 FY26-27. End-to-end part traceability maintained.
Field Performance 150 PPM Returned Customer-returned defect rate tracked per program. PPAP L5 containment across all parts. Continuous improvement cycle in place per IATF 16949.
Audit Clean · Aug 2025 · PPAP L5 All Programs 06 / 15
Sreeram Engineering Works
Product Case Study 01 / 05

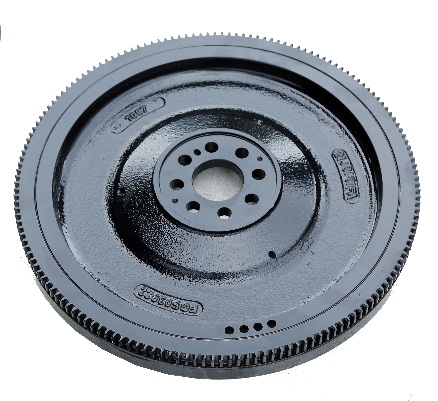

Flywheels — At a Glance
Flywheel
72,000 Units per year
25+ Yrs Supplied to Ashok Leyland
2 OEMs AL + Yanmar · Active programs
Technical Specification
Material Grey Iron (GG25)
Weight Range 20 – 80 kg
Application Engine-to-transmission interface · CV drivetrain and agricultural engines
Critical Requirements Face runout, bore concentricity, ring gear seating
Customers Ashok Leyland · Yanmar Engines
PPAP Status Level 5 — fully approved · serial production
Serial Production · PPAP L5 · Ashok Leyland & Yanmar 07 / 15
Sreeram Engineering Works
Product Case Study 02 / 05

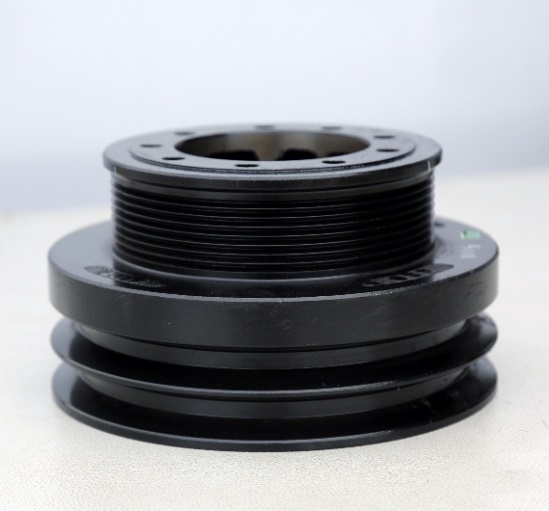

Pulleys — At a Glance
Pulley
1,00,000 Units per year
2 Types Poly-V · V-Belt configurations
ED Coated Electro-deposition finish
Technical Specification
Material Grey Iron — Electro-Deposition (ED) coated finish
Weight Range 2 – 30 kg
Variants Poly V Pulley, V Pulley — multiple configurations supplied
Application Auxiliary drive systems — alternator, power steering, A/C drives in CV engines
Critical Requirements Belt groove profile accuracy, bore concentricity, ED coat thickness uniformity
Customer Ashok Leyland
PPAP Status Level 5 — fully approved · serial production
Poly-V & V-Belt · ED Coated · PPAP L5 08 / 15
Sreeram Engineering Works
Product Case Study 03 / 05 · High Precision

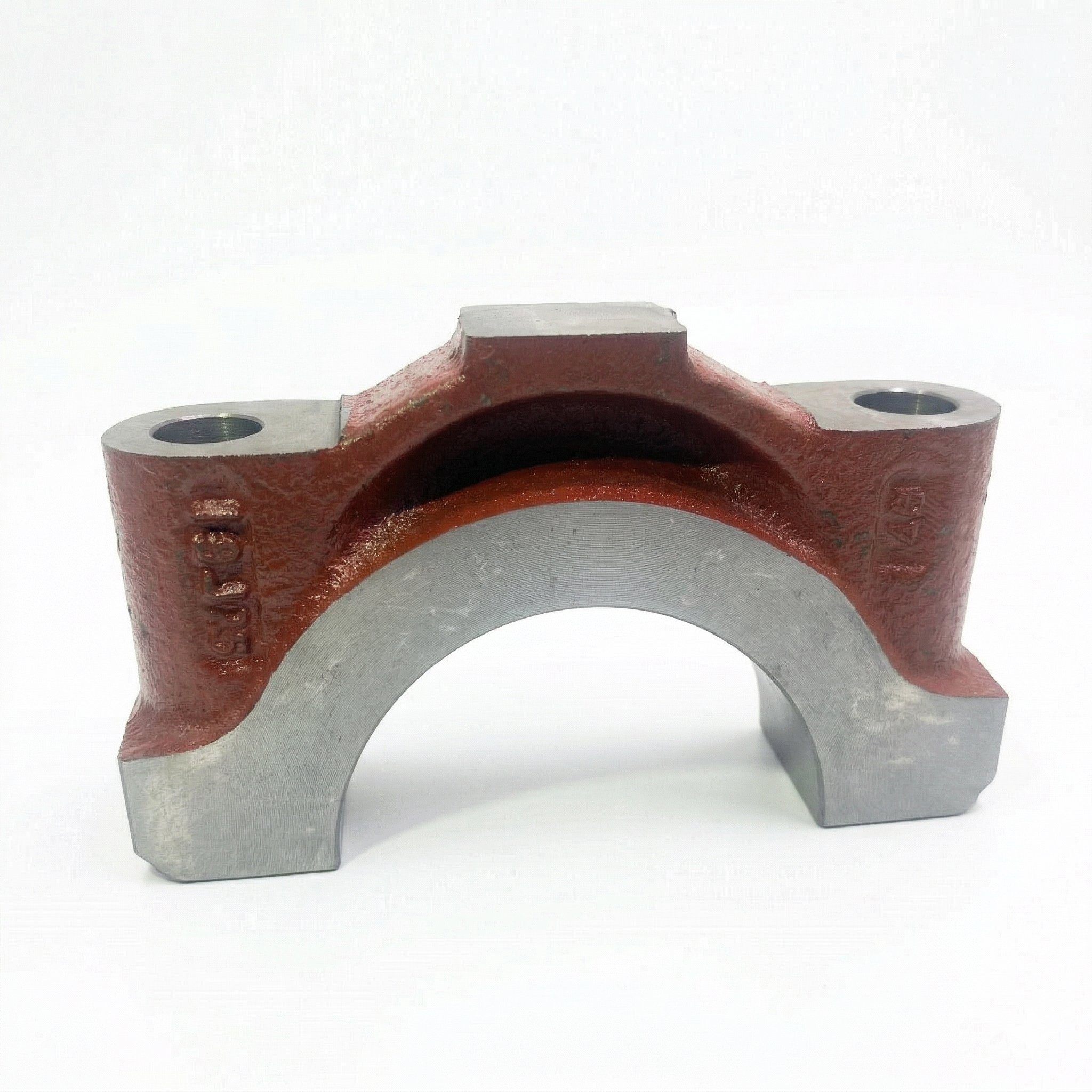

Bearing Cap — At a Glance
Bearing Cap
1,50,000 Units per year
±2 µm Register width tolerance — held in serial production
PPAP L5 Fully approved · serial production
Technical Specification
Material SG Iron (Spheroidal Graphite Iron)
Weight 0.9 kg
Critical Feature Register width tolerance: ±2 microns — maintained in serial production
Application Commercial vehicle powertrain — bearing retention and alignment
Customer Ashok Leyland
PPAP Status Level 5 — fully approved · serial production
±2 Micron Tolerance · 150K Units/Year · PPAP L5 09 / 15
Sreeram Engineering Works
Product Case Study 04 / 05
Hubs — At a Glance
Hub
25,000 Units per year
2 OEMs Caterpillar + Bull Machines
Off-Road Heavy-duty application segment
Technical Specification
Material SG Iron (Spheroidal Graphite Iron)
Weight 25 - 85 kgs
Application Off-road heavy-duty vehicle axle and wheel hub assemblies
Critical Requirements Bore diameter, bearing seat concentricity, face perpendicularity
Customers Caterpillar · Bull Machines
PPAP Status Level 5 — fully approved · serial production
Off-Highway · Caterpillar & Bull Machines · PPAP L5 10 / 15
Sreeram Engineering Works
Product Case Study 05 / 05

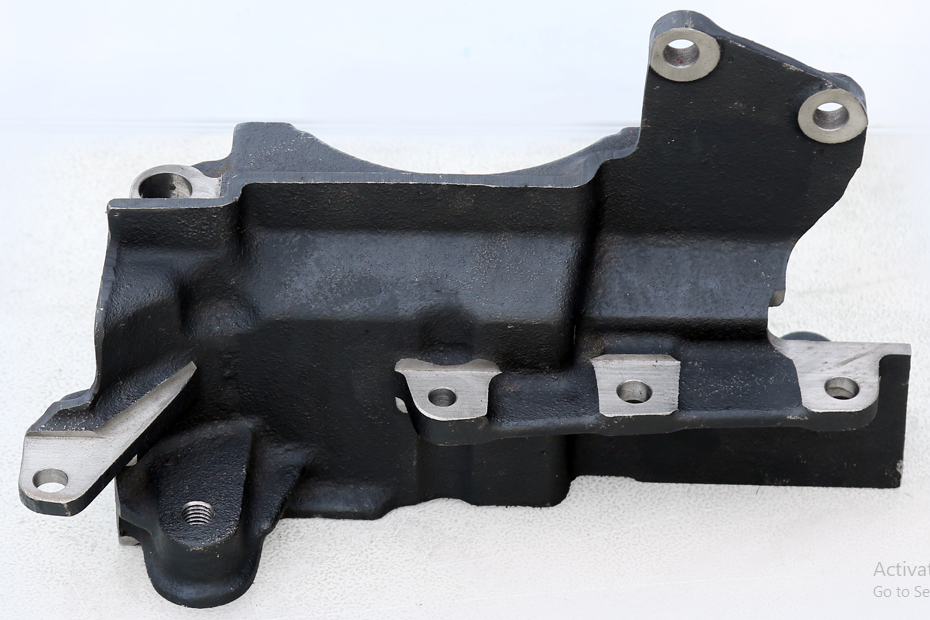

Brackets — At a Glance
Bracket
50,000 Units per year
4 Variants Spring · MTG · Aux · CSO
25+ Yrs Ashok Leyland relationship
Technical Specification
Part Name Engine & Chassis Bracket variants (Spring, MTG, Auxiliary, CSO)
Material Grey Iron
Weight Range 2 – 20 kgs
Application Commercial vehicle engine and chassis mounting systems
Critical Requirements Dimensional accuracy on mounting faces; surface finish on mating surfaces; positional tolerances per Ashok Leyland drawing
Customer Ashok Leyland
PPAP Status Level 5 — fully approved, active serial production
Commercial Vehicles · Ashok Leyland · Multiple Variants 11 / 15
Sreeram Engineering Works
Customer Base
Share of Business
Ashok Leyland45%
Yanmar Engines20%
PT Tech13%
Caterpillar10%
Timken7%
Bull Machines5%
Active Customers & Development Programs
Ashok Leyland Since 2000 · Commercial Vehicles
Yanmar Engines Since 2022 · Agri / Industrial
PT Tech Since 2024 · Power Transmission
Caterpillar Since 2022 · Off-Highway
Timken Since 2021 · Bearings
Bull Machines Since 2021 · Construction
Isuzu Under Development · 2025
Turbotech Under Development · 2025
New Segments Gen. Engg · Hydraulics · Auto
6 Active Customers · 2 Under Development 12 / 15
Sreeram Engineering Works
Commercial Readiness
Key Parameters
80 – 95%On-Time Delivery
150 PPMField Quality
5 WeeksCasting Lead Time
3 WeeksMachining Lead Time
ERPProduction Tracking
Capacity & Delivery
Foundry Capacity 400T / 250T Utilised ~38% headroom available for new programs. Standard casting lead time 5 weeks.
Machine Shop Capacity 60% Utilised 40% headroom available. Standard machined part lead time 3 weeks.
Launch Support Integrated APQP In-house casting and machining under one quality system. PPAP L5 capable. Faster NPI cycle with single-supplier accountability.
ERP & Traceability Full Visibility ERP-integrated scheduling, quality, and delivery tracking across both divisions. Digital SPC gauge integration in progress (Q2 FY26-27).
38% Foundry Headroom · 40% Machining Headroom · OTD 80–95% 13 / 15
Sreeram Engineering Works
Growth Roadmap
Revenue Outlook
FY 25-26 (Actual)₹50 Cr
FY 26-27 (Forecast)₹65 Cr
FY 27-28 (Forecast)₹100 Cr
FY 28-29 (Target)₹150 Cr
Investment Roadmap
FY 2026 — Committed
Robotic Machine Shop
3 machining lines fully automated using robotics. Reduces manual dependency, improves cycle-time consistency, and scales output without proportional headcount growth.
FY 2026–27 — Planned
Industry 4.0 Implementation
Factory-wide digital transformation: online SPC with digital gauges integrated to ERP, real-time production monitoring, and data-driven quality decisions across both divisions.
FY 2026–27 — Planned
Green Energy Transition
Full facility transition to renewable energy sources — reducing operational cost, lowering carbon footprint, and aligning with the sustainability requirements of global OEM supply chains.
FY 2026–29 — Growth Target
Market Diversification
Expand into general engineering, hydraulic pumps, and automotive segments. Target 4 new customers per year. Revenue target ₹150 Cr by FY28-29.
₹150 Cr Target · FY28-29 · Robotics 2026 14 / 15
Sreeram Engineering Works
ISO 9001:2015 · IATF 16949:2016 · TÜV SÜD
Let's Qualify.
THANK
YOU.
Email mktg@sreeramengg.co.in
Phone +91 97152 16494  ·  +91 98657 16494
Web www.sreeramengg.co.in
Address 183-C Athipalayam Road, Periyanaickenpalayam, Coimbatore – 641020
Summary
₹50 CrAnnual Revenue
200+Workforce
150 PPMField Quality
PPAP L5All Programs
6 OEMsActive Customers
0 NCAug 2025 Audit
Confidential · Customer Qualification Deck · Sreeram Engineering Works · 2026 ↓ Download PDF 15 / 15
